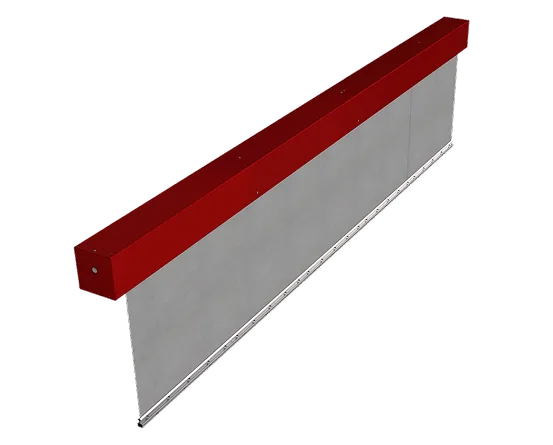

SmokeMaster SM5

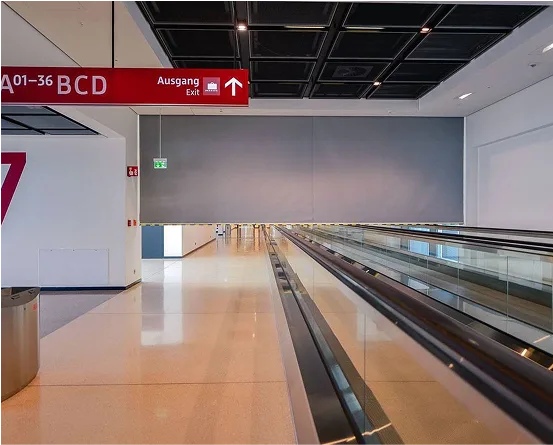

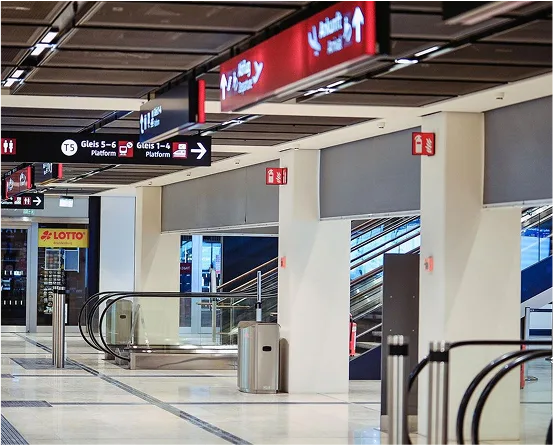

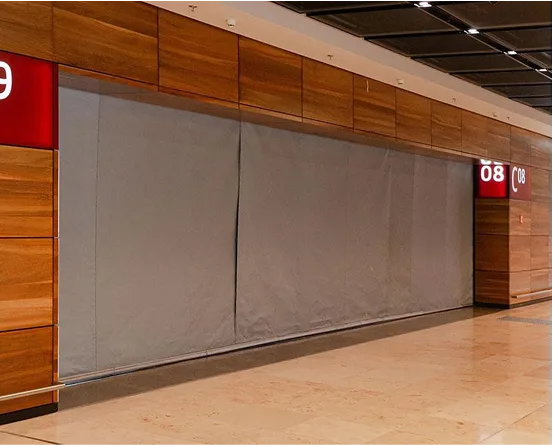

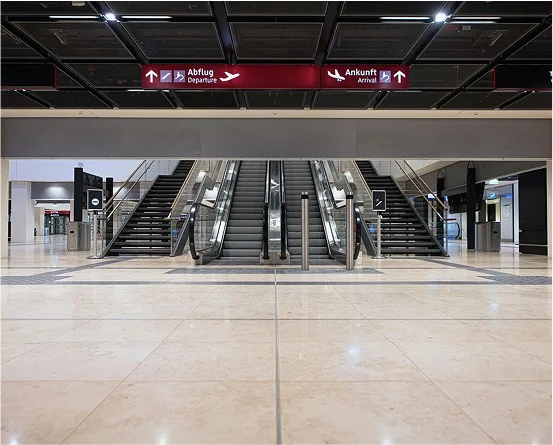

A SmokeMaster SM5 is a smoke curtain that drops automatically in case of fire. Its role is to limit smoke and combustion gases to prescribed smoke sections, preventing the uncontrolled spread and cooling of the smoke gas. A SKC-SC certified control panel ensures safe operation. The SmokeMaster SM5 is used in shopping centres, atria, airports, warehouses and factory buildings etc, in other words, wherever static smoke curtains are not suitable for architectural, logistical or operational reasons.
- SmokeMaster SM5 curtains have been tested and certified according to EN 12101-1:2005+A1:2006
- The associated SKC-SC control panel has been certified according to EN 12101-10:2005 and ISO 21927-9:2012
- “Invisible” fire protection: no visible fixings and sprung bottom bar
- Extra option to equip the curtain with side guides to hold the fabric in position
- Pre-fabricated assembly delivered with a modular design
- Operation: ASB 1 to ASB 4
- Unit length: 1.5 m to an infinite length
- Drop: 0.5 m to 15 m
- All metallic parts can be provided with a powder coating according to RAL or similar
